  1. Développeurs
  2. API JavaScript

Exemple d'intégration

Cette page illustre les capacités de l'API. Voyez comment la charger dans une page web et comment utiliser les fonctions à disposition.

PreviousRéférences de l'APINextD'autres ont réussi !

Last updated 7 months ago

Découvrez l'exemple en ligne de l'intégration de l'API en cliquant sur

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Jakartowns JavaScript API Demo</title>
    <script src="https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js"></script>
    <style>
        body {
            font-family: Arial, sans-serif;
            margin: 0;
            padding: 0;
            padding-bottom: 1cm; /* Add space for the footer */
        }

        h1 {
            text-align: center;
        }

        .container {
            display: flex;
            justify-content: center;
            align-items: flex-start;
        }

        #JakartownsContainer {
            align-items: center;
            position: relative;
            width: 40%;
            left: 5%;
            aspect-ratio: 16 / 9;
        }

        #formContainer {
            flex: 1;
            margin-left: 20px;
            display: flex;
            flex-direction: column;
            align-items: center;
        }

        form {
            text-align: center;
            margin-top: 20px;
        }

        form label {
            display: block;
            font-weight: bold;
            margin-bottom: 5px;
        }

        form input[type="text"] {
            padding: 5px;
            margin-bottom: 10px;
            width: 200px;
        }

        form input[type="button"] {
            padding: 5px 10px;
            margin: 10px 5px;
            background-color: #4caf50;
            color: white;
            border: none;
            cursor: pointer;
        }

        #logs {
            text-align: center;
            margin-top: 20px;
        }

        #goToJakartownsBtn {
            padding: 8px 16px;
            background-color: #4285f4;
            color: white;
            border: none;
            border-radius: 4px;
            cursor: pointer;
            margin-top: 20px;
        }
    </style>
</head>

<body>
    <h1>Jakartowns JavaScript API Demo</h1>
    <div id="logs"></div>
    <div class="container">
        <div id='JakartownsContainer'>
            <div id="app"></div>
        </div>
        <div id="formContainer">
            <form>
                <label for="longitude">Longitude:</label>
                <input type="text" id="longitude" name="longitude" placeholder="Enter longitude" required><br>
                <label for="latitude">Latitude:</label>
                <input type="text" id="latitude" name="latitude" placeholder="Enter latitude" required><br>
                <label for="tilt">Tilt:</label>
                <input type="text" id="tilt" name="tilt" placeholder="Enter tilt"><br>
                <label for="pan">Pan:</label>
                <input type="text" id="pan" name="pan" placeholder="Enter pan"><br>
                <label for="fov">Field of View:</label>
                <input type="text" id="fov" name="fov" placeholder="Enter FOV"><br>
                <input type="button" id="setPositionBtn" value="Set Position">
                <input type="button" id="setTiltBtn" value="Set Tilt">
                <input type="button" id="setPanBtn" value="Set Pan">
                <input type="button" id="setFovBtn" value="Set FOV">
            </form>
            <button id="goToJakartownsBtn">Go to Jakartowns Web App</button>

        </div>
    </div>
    <script>
        const logs = document.querySelector('#logs');

        async function print(txt) {
            await logs.insertAdjacentHTML('beforebegin', txt);
        }
    </script>
    <script>
        async function isAuthenticated() {
            // Request to confirm the authentication on Jakarto platform
            const confirmation_request = await fetch('https://account.jakarto.com/auth', {
                credentials: 'include',
                method: 'GET',
            });
            await confirmation_request.text();
            return confirmation_request.status === 200;
        }

        async function main() {
            print('Checking authentication...<br/>');
            let isConnected = await isAuthenticated();
            print(`Connected: ${isConnected}<br/>`);

            if (!isConnected) {
                print('User not authenticated. Sending request to connect to Jakarto webservices...<br/>');

                const form = new FormData();
                // TODO: Replace values by user credentials
                form.append('email', 'TO_REPLACE');
                form.append('password', 'TO_REPLACE');

                // Request to set the connection cookie
                // ⚠ Authentication will work even if the above credentials are incorrect if you already have a valid cookie (by connecting to the Jakarto web platform using the regular web page)
                // If you want to enforce a new cookie, please first disconnect your account from https://account.jakarto.com
                await fetch('https://account.jakarto.com/users/login', {
                    headers: {
                        'content-type': 'application/x-www-form-urlencoded',
                    },
                    body: new URLSearchParams(form),
                    method: 'POST',
                    mode: 'cors',
                    credentials: 'include',
                    redirect: 'manual', // avoid redirection... it will cause a CORS error on jakartowns.jakarto.com/ route
                });
            } else {
                print('Already connected<br/>');
            }

            print('Confirming authentication...<br/>');
            isConnected = await isAuthenticated();
            print(`Connected: ${isConnected}<br/>`);

            if (!isConnected) {
                print('User cannot connect. Please check credentials.<br/>');
                return;
            }

            print('<br/>Example with <b>frontend API</b>:<br/>');

            function loadScript(javascriptUrl) {
                return new Promise((resolve, reject) => {
                    const script = document.createElement('script');
                    script.src = javascriptUrl;
                    script.async = true;
                    script.onload = resolve;
                    script.onerror = reject;
                    document.head.appendChild(script);
                });
            }

            print(`Frontend API status: script not yet loaded. Expected status ==> false. Status: ${window.hasOwnProperty('jakartowns')}<br/>`);
            await loadScript('https://maps.jakarto.com/api/v1.js');
            print(`Frontend API status: script should be loaded. Expected status ==> true. Status: ${window.hasOwnProperty('jakartowns')}<br/>`);

            async function setPosition(viewer, wantedPosition) {
                const jakartownsData = await viewer.setPosition(wantedPosition);
                console.log(`Current image UID: ${JSON.stringify(jakartownsData.uid)}`);
                console.log(`Distance between targeted lngLat and panorama lngLat: ${JSON.stringify(jakartownsData.distance)} km`);
            }

            async function setTilt(viewer, wantedTilt) {
                const tilt = await viewer.setTilt(wantedTilt);
                console.log(`Tilt set to: ${tilt}`);
            }

            async function setPan(viewer, wantedPan) {
                const pan = await viewer.setPan(wantedPan);
                console.log(`Pan set to: ${pan}`);
            }

            async function setFov(viewer, wantedFov) {
                const fov = await viewer.setFov(wantedFov);
                console.log(`FOV set to: ${fov}`);
            }

            const jakartownsOptions = {
                headerEnabled: true,
                minimapEnabled: false,
            };

            if (window.jakartowns === undefined) {
                const currentURL = window.location.origin;
                alert('You need to be connected to the Jakarto platform first. The page will redirect to the authentication page.');
                window.open(`https://account.jakarto.com/users/login?redirectTo=${currentURL}`, '_self');
            }

            window.jakartowns.app.create_jakartowns(
                '#app',
                jakartownsOptions,
                (viewer) => {
                    window.jakartowns_instance = viewer; // do anything with the viewer instance outside of this callback
                    console.log('Jakartowns instance is loaded');

                    // Listeners on client update (Jakartowns side)
                    window.addEventListener('position', (e) => {
                        // When the user changes their position
                        console.log('position event', e.detail);
                        document.getElementById('longitude').value = e.detail.longitude;
                        document.getElementById('latitude').value = e.detail.latitude;
                    });

                    window.addEventListener('rotation', (e) => {
                        // When the user changes the horizontal rotation of the view
                        console.log('rotation event', e.detail);
                        document.getElementById('pan').value = e.detail;
                    });

                    window.addEventListener('tilt', (e) => {
                        // When the user changes the vertical rotation of the view
                        console.log('tilt event', e.detail);
                        document.getElementById('tilt').value = e.detail;
                    });

                    window.addEventListener('fov', (e) => {
                        // When the user changes the field of view of the view
                        console.log('fov event', e.detail);
                        document.getElementById('fov').value = e.detail;
                    });

                    // API usage example
                    document.querySelector('#setPositionBtn').addEventListener('click', (event) => {
                        const newLngLat = { latitude: document.getElementById('latitude').value, longitude: document.getElementById('longitude').value };
                        setPosition(viewer, newLngLat);
                    });

                    document.querySelector('#setTiltBtn').addEventListener('click', (event) => {
                        setTilt(viewer, document.getElementById('tilt').value);
                    });

                    document.querySelector('#setPanBtn').addEventListener('click', (event) => {
                        setPan(viewer, document.getElementById('pan').value);
                    });

                    document.querySelector('#setFovBtn').addEventListener('click', (event) => {
                        setFov(viewer, document.getElementById('fov').value);
                    });
                },
            );
        }

        main();

        function goToJakartownsWebApp() {
            const latitude = document.getElementById('latitude').value;
            const longitude = document.getElementById('longitude').value;
            const tilt = document.getElementById('tilt').value || '0';
            const pan = document.getElementById('pan').value || '0';
            const fov = document.getElementById('fov').value || '90';

            const url = `https://maps.jakarto.com/?lat=${latitude}&lng=${longitude}&pan=${pan}&tilt=${tilt}&fov=${fov}`;
            window.open(url, '_blank');
        }

        const goToJakartownsBtn = document.getElementById('goToJakartownsBtn');
        goToJakartownsBtn.addEventListener('click', goToJakartownsWebApp);

    </script>
</body>

</html>
💻
🚀
ce lien

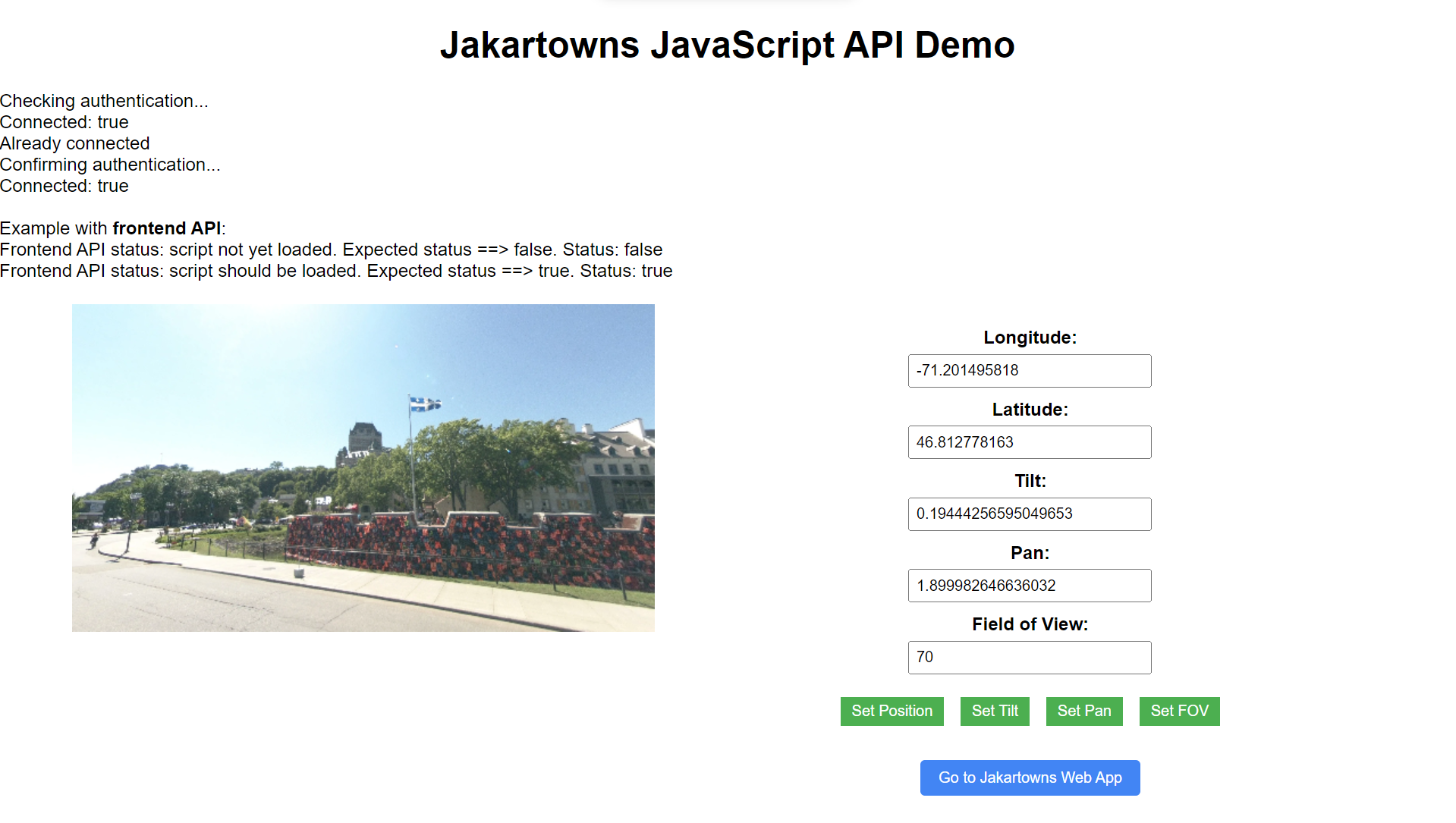

Capture d'écran du rendu obtenu avec le code ci-dessous.
